220V - 240V EV Charger Extension Cable NEMA 14-30
220V - 240V EV Charger Extension Cable NEMA 14-30
220V - 240V EV Charger Extension Cable NEMA 14-30
220V - 240V EV Charger Extension Cable NEMA 14-30
Splitvolt offers a 30-day money back guarantee and free shipping in the continental US.
- Flexible and convenient for EV charging and dryer
- Superior 100% copper conductivity with male NEMA 14-30P and female NEMA 14-30R connectors, 10AWG wire for safety, and minimum resistance
- Rated for 30A circuits, 125/250VAC, and 24 Amp (5.7kW) maximum continuous EV charging rate
- Durable, safe, heat resistant construction providing protection from wear and elements
1 Year Manufacturer's Limited Warranty included
-
![]()
Durable, safe, and heat-resistant construction
-
![]()
100% copper for superior conductivity with female-to-male (NEMA 14-30) connectors
-
![]()
NEMA standards compatible for appliance or EV charger use
-
![]()
Portable and flexible design
220V - 240V Extension Cables
- Length - Full length 16ft or 26ft extension cable that is flexible/convenient for EV charging and dryer
- Flexibility & Convenience - The extension cable gives you more flexibility in charging your EV
- Connection Interface - Superior copper conductivity with male/female (NEMA 14-30) connectors and 10AWG wire for safety
- Electrical Specifications - Rated for 30A circuits, 125/250VAC, and 24 Amp (5.7kW) maximum continuous EV charging rate
- Reliable - Durable, safe, and heat-resistant construction provides protection from wear and outdoor elements
How the Extension Cable Works

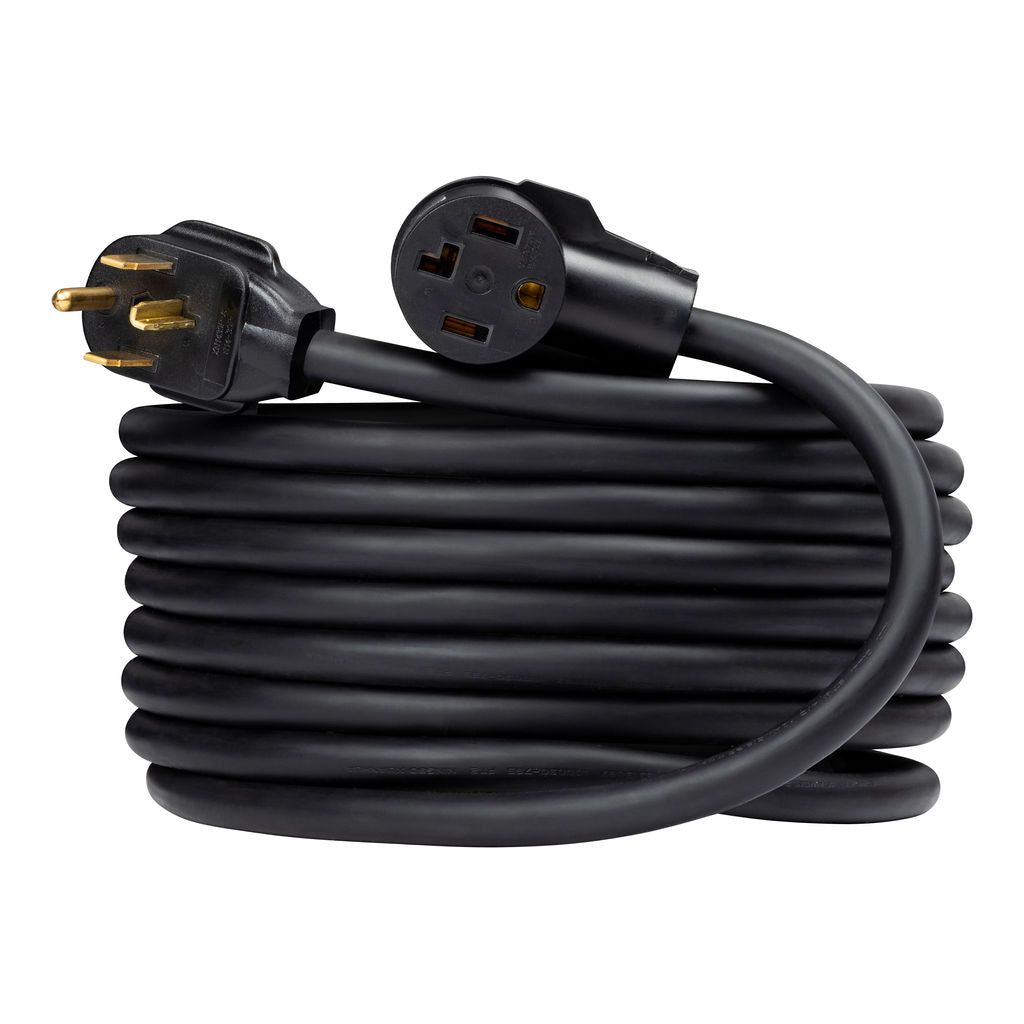

The Splitvolt NEMA 14-30 Extension Cable is designed for 220V - 240V applications such as appliance, or electric vehicle charging. It allows you to safely extend the distance between the wall outlet and your electric vehicle for optimal placement. The cable has one NEMA 14-30 male interface for connection to the wall socket and one NEMA 14-30 female interface to connect to your EV charger.
Need more help?
-
Chat with us below
- Check out the FAQ
- www.splitvolt.com/help
16 Foot Extension Cable
| Length | 16 ft 5 in (5 m) |
| Product Weight | 6.39 lbs (2.6kg) |
| Interfaces | 1 male NEMA 14-30 and 1 female NEMA 14-30 |
| Cable Type | STW Service-Elastomer & oil resistant jacket |
| Color | Black |
| Wire Gauge | 10AWG |
| Wire Diameter | 2.588 mm per solid conductor |
| Wire Crossectional Diameter | 5.261 mm squared |
| Package Dimensions | 11″ x 11″ x 4″ |
26 Foot Extension Cable
| Length | 26 ft 3 in (8 m) |
| Product Weight | 9.26 lbs |
| Interfaces | 1 male NEMA 14-30 and 1 female NEMA 14-30 |
| Cable Type | STW Service-Elastomer & oil resistant jacket |
| Color | Black |
| Wire Gauge | 10AWG |
| Wire Diameter | 2.588 mm per solid conductor |
| Wire Crossectional Diameter | 5.261 mm squared |
| Package Dimensions | 13″ x 13″ x 5″ |
