Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Splitvolt Splitter Switch NEMA 10-30 / 14-50 Upgrade
Match your 240V dryer plug to the left outlet of the Splitter Switch labeled 'Dryer' and your EV charger plug to the right outlet of the Splitter Switch labeled 'EV'.
-
![]()
Dryer Outlet: NEMA 10-30
-
![]()
EV Charger: NEMA 14-50
- New electric vehicle household appliance saves thousands of dollars and instantly provides power for Level 2, fast home charging
- Don't pay for a new charging circuit - Splitvolt's automatic power switching safely shares an existing 220V - 240V dryer outlet with an EV charger
- Plug and Play: No electrical installation required! Just plug it in and you have safe, L2, fast home charging in minutes
- Fast and Safe: Internal safety breaker protects your 30 amp home wiring from exceeding the 24 amp NEC maximum safe charging rate, while display shows real-time power usage
- This model supports standard NEMA 10-30 and 14-50 plugs and outlets for your dryer & EV charger and supports common third party EVs and EV chargers
1 Year Manufacturer's Limited Warranty included
Learn More
-
![]()
Automatic power switching safely shares your existing dryer outlet with your EV charger.
-
![]()
Plug and play simplicity; just plug it in and immediately get power for Level 2, fast home charging.
-
![]()
Save money and time; no need to install a dedicated Level 2 charging circuit.
-
![]()
Safe for home wiring via internal safety circuit breaker.
The Challenge and Solution
Depending on the battery range, charging an electric vehicle on a standard 120V outlet, also known as level one or L1 charging, can take anywhere from 20 hours to multiple days. This charging rate of adding just a few miles per hour does not work for the average driver. However, a 240V outlet will charge an EV seven times faster. This is called level two, or L2, charging.
Until now, an EV customer would need to schedule an electrician, file permits, and pay $1000-$2000 on home installation of a dedicated 240V circuit. The Splitvolt Splitter Switch is a cost effective, and time saving alternative that allows EV drivers to safely share their existing 240V dryer circuit with their EV charger; no installation required!
How the Splitter Switch Works

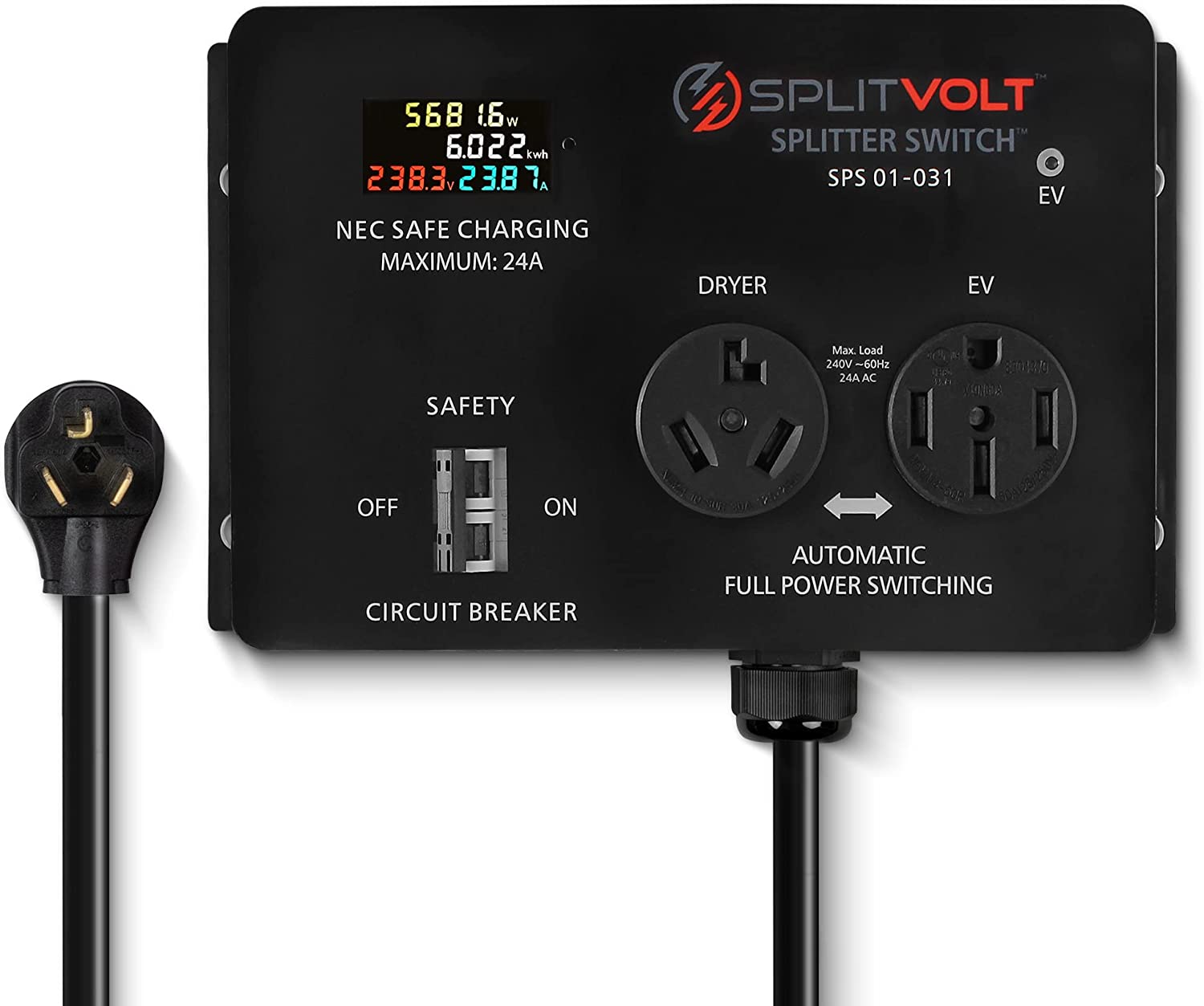

The Splitvolt Splitter Switch plugs into your existing, standard household NEMA 10-30 wall outlet, and provides NEMA 10-30 and 14-50 outlets for use with your dryer and EV charger. Turn the switch to 'ON', and you've got fast home charging! It monitors, displays, and switches full 24A power automatically between attached devices. For this configuration, you must set your charger for a maximum safe charging rate of 24A.
Need more help?
-
Chat with us below
- Check out the FAQ
- www.splitvolt.com/help
Watch the video to see how the Splitter Switch works!
-(437-%C3%97-300-px).png?v=1673586597218&options=)
Splitter Switch Key Features
- Automated power switching between dryer and EV power sockets
- Full-color display screen and LED status lights
- Real-time voltage, current, kWh, and status indicators
- Integrated 24A circuit breaker with easy reset for added protection
- Optional manual power-off switch for extra safety and convenience
- Supports standard 30A dryer circuits (max. 24A for NEC safe charging rate)
- Compatible with standard EVs sold in North America and 3rd party EV chargers
- Supports common household dryer and EV charger plug types
- Integrated wall mount screw holes and 4 ft pigtail plug for easy installation
| Wall socket connection | NEMA 10-30 Male |
| Dryer Outlet | NEMA 10-30 Female |
| EV Outlet | NEMA 14-50 Female |
| Maximum Load | 240V ~ 60Hz 24A AC |
| Dust and Water Protection | Indoor Use Only |
| Limited Warranty | 1 year |
| Digital Display | Real-time kWh, amps, volts, and status indicators |
| Unit Weight | 6.7 lbs |
| Unit Dimensions | 12 x 8.5 x 4 inches |
| Package Dimensions | 14 x 14 x 7 inches |
| Package Shipping Weight | 8 lbs 10 oz |
Works Best With
Splitvolt is compatible with most common EVs. Still have questions? Visit splitvolt.com/help or chat with us below.
