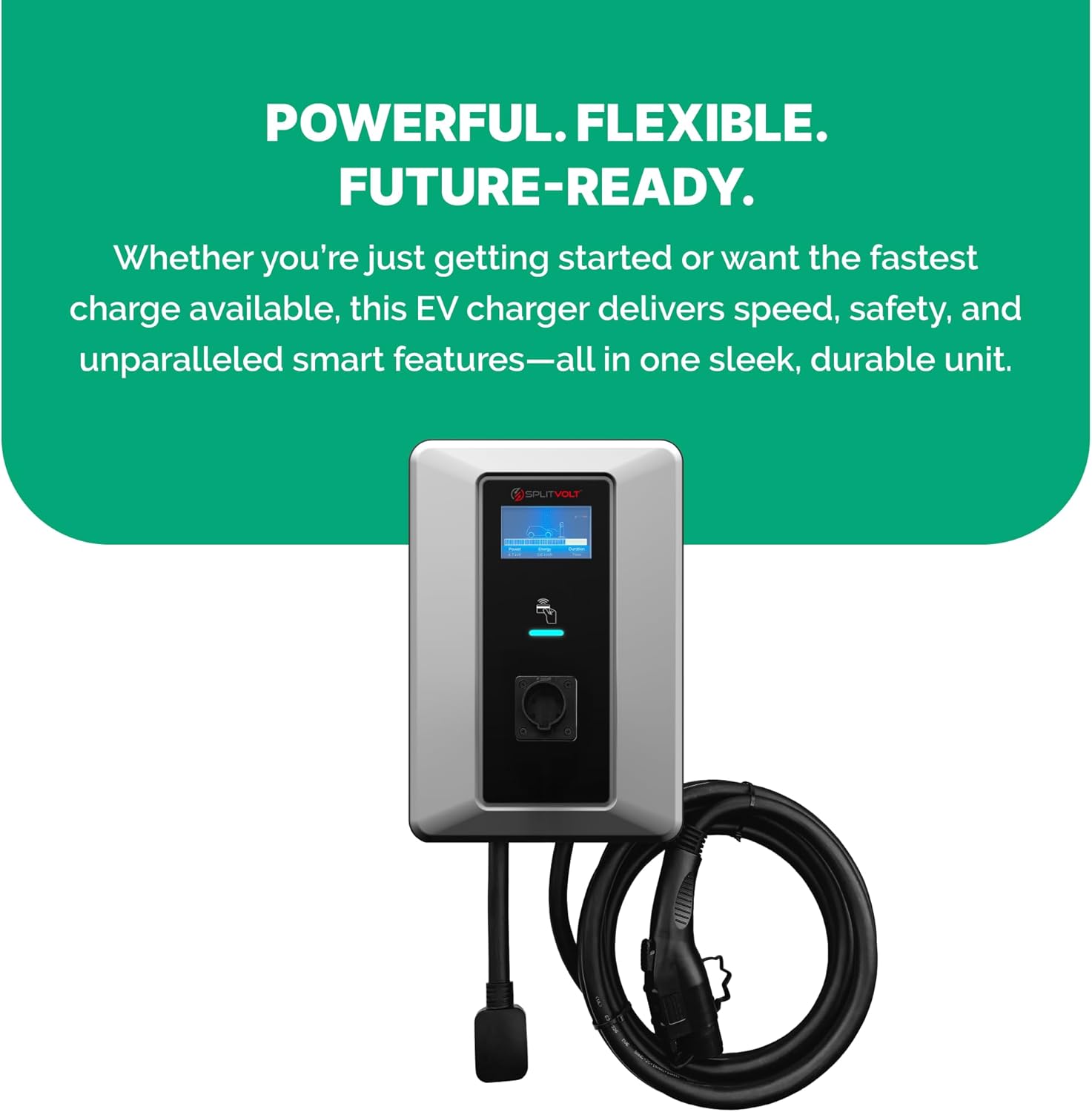

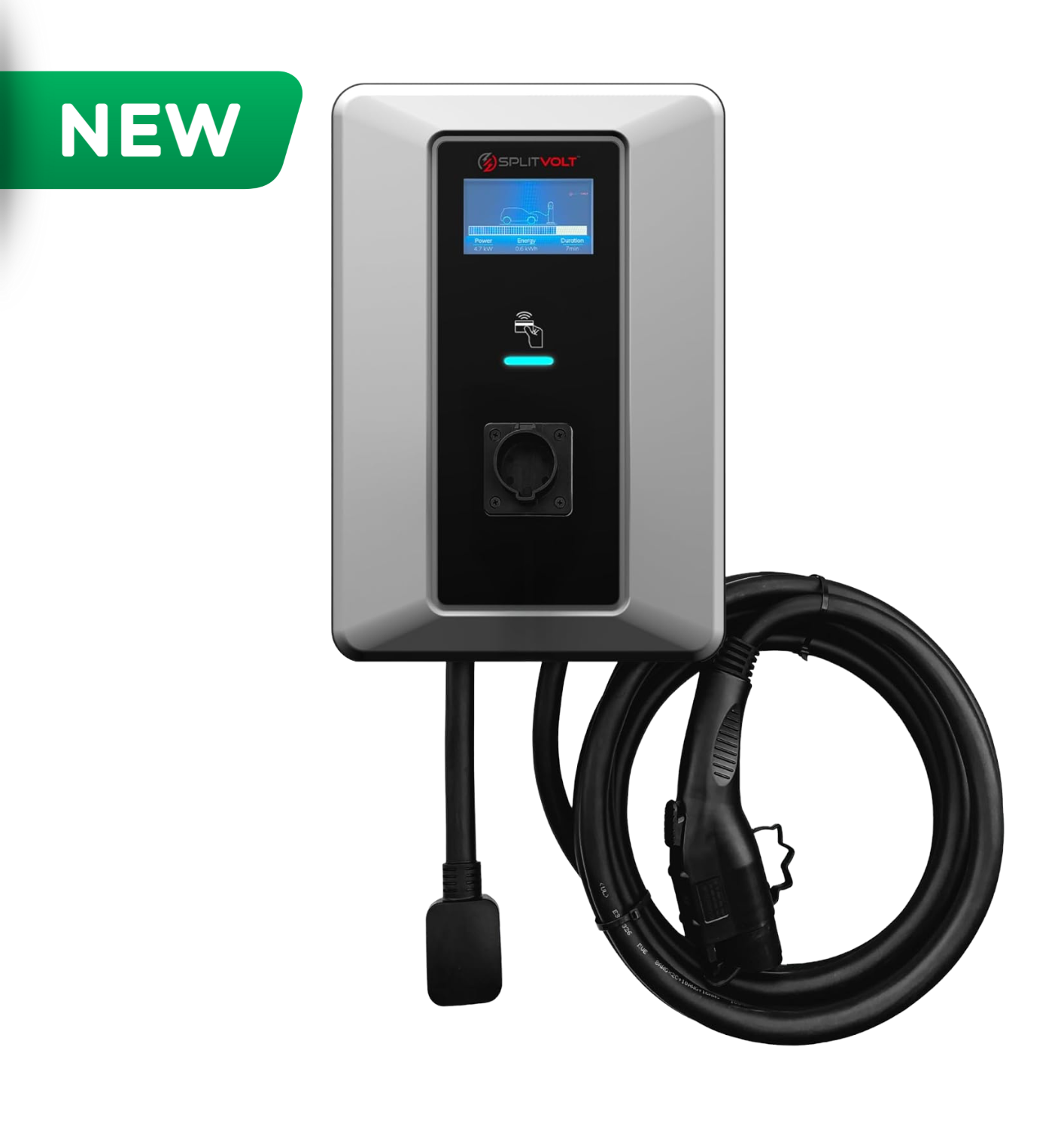

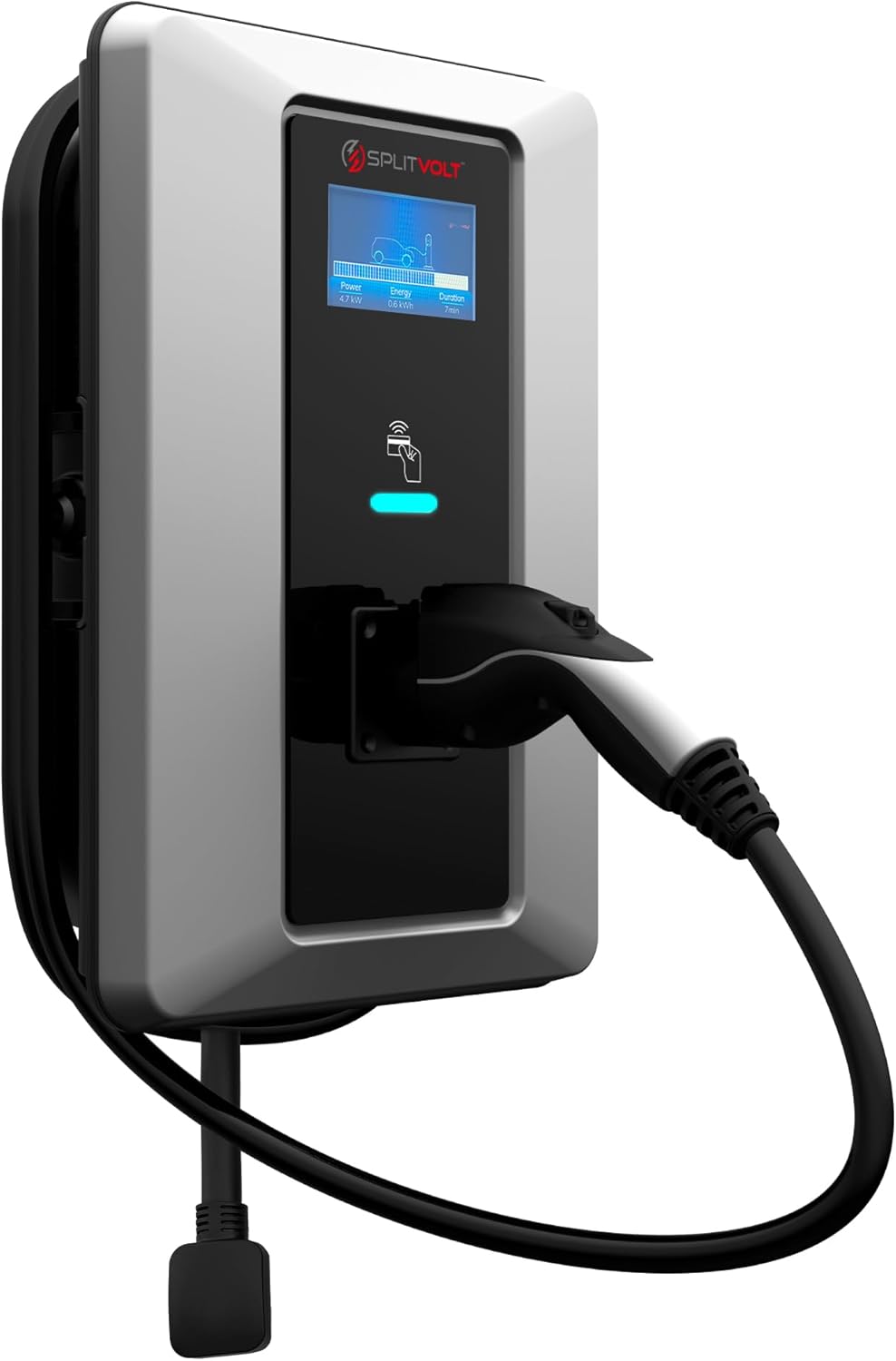

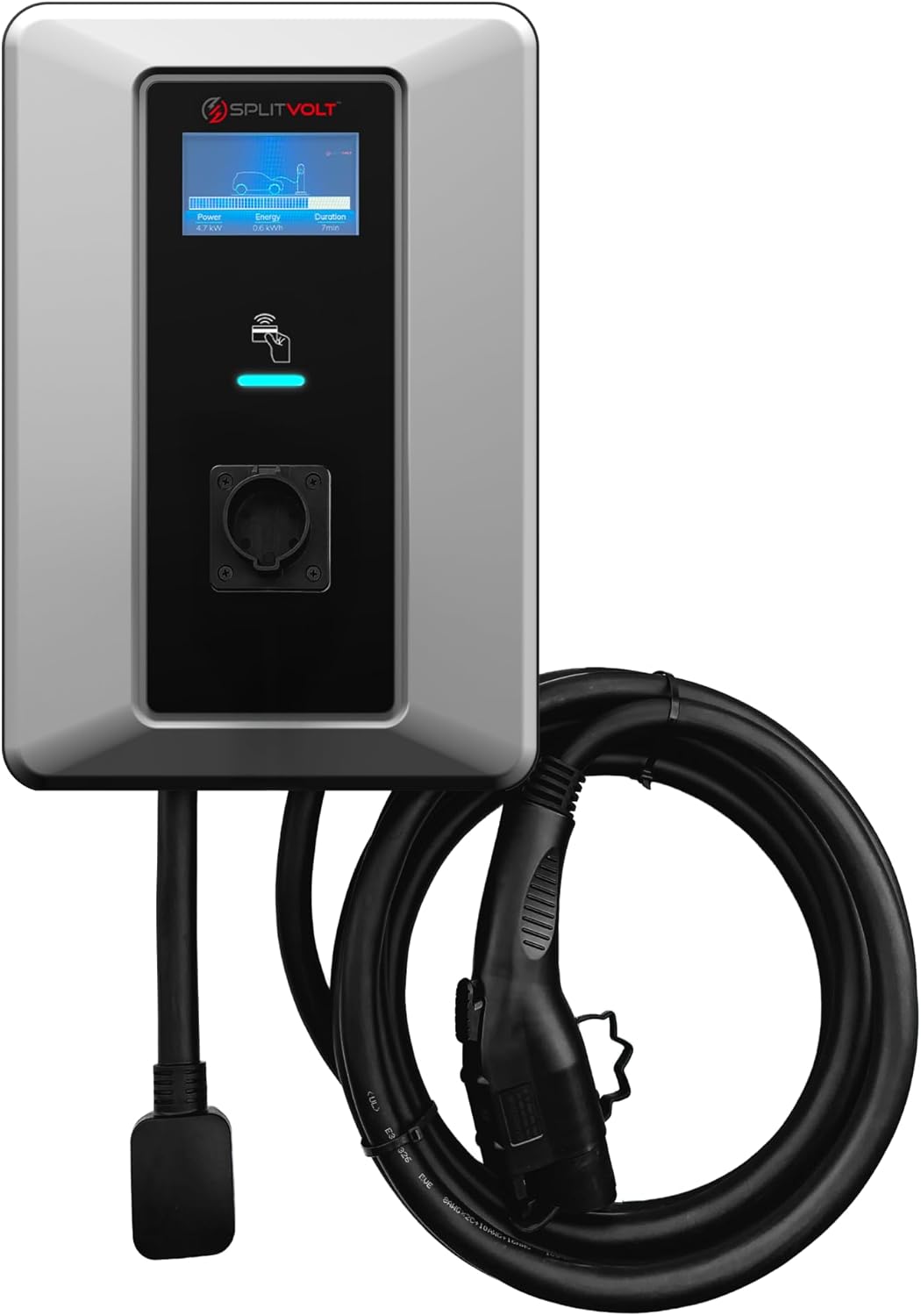

Splitvolt Level 2 EV Smart Charging Station, Indoor/Outdoor Adjustable 50A (hardwired) charging/40A (NEMA 14-50), schedule charging, App Setup, RFID, OCPP, power sharing, US Support, 23ft Cable, J1772

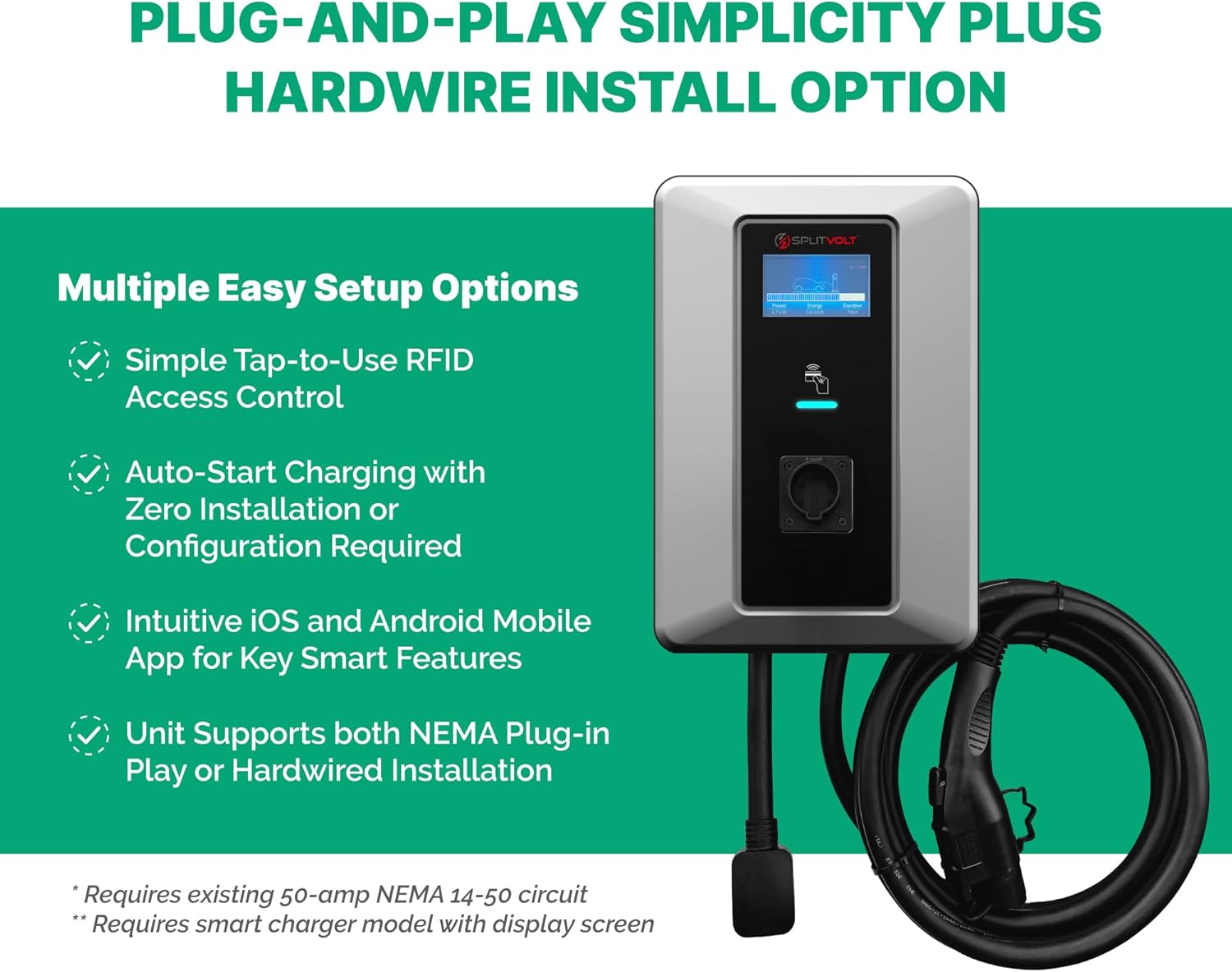

• PLUG AND PLAY AND HARDWIRE ALL IN ONE - Plug directly into a household 220v - 240V NEMA 14-50 outlet with 50A circuit for immediate plug and play use (no electrician required) or choose up to 50A hardwired installation (electrician required). For Tesla EVs, this will require an adapter.

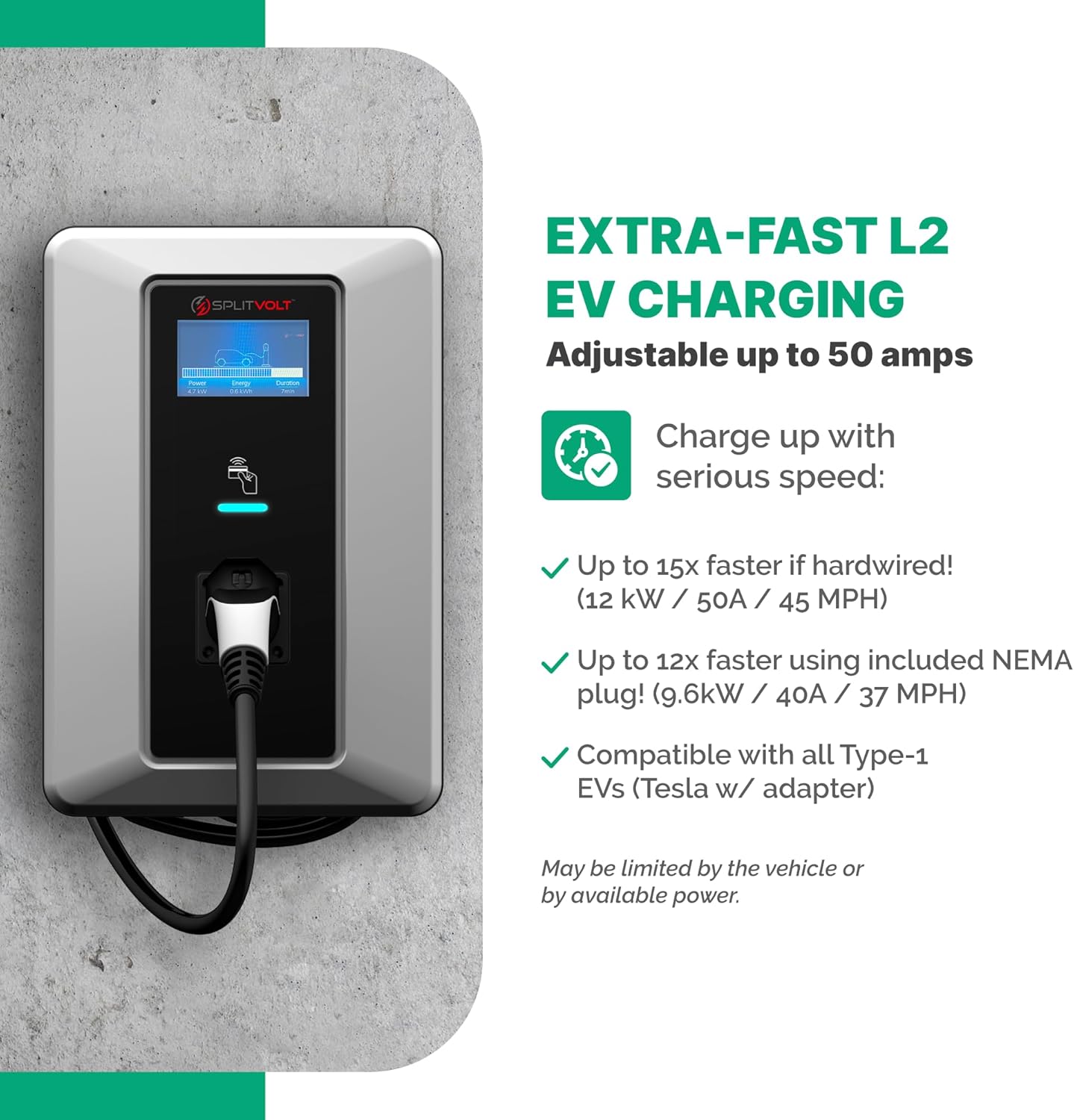

• ULTRA FAST HOME EV CHARGING - This Level 2 EV charger charges up to 12-15 times faster than a 120V outlet, delivering 37-45 mi/hr* depending on if you choose to plug and play or have a hardwire installation. It features a J1772 connector for all non-Tesla EVs and requires a 50A or 60A circuit. Tesla EVs will require an adapter. Our EV Charging Stations offer 12kW (50A) or 9.6kW (40A) power outputs for fast level 2 charging. *MPH Charging rates are dependent on the vehicle.

• ADJUSTABLE POWER (8A–50A) & SCHEDULED CHARGING – Take full control of your energy use and savings. Customize your charging speed to match your home’s capacity, from 8A to 50A, and schedule charging sessions during off-peak utility hours to reduce your electric bill. Enjoy the convenience of waking up to a fully charged vehicle without paying peak rates.

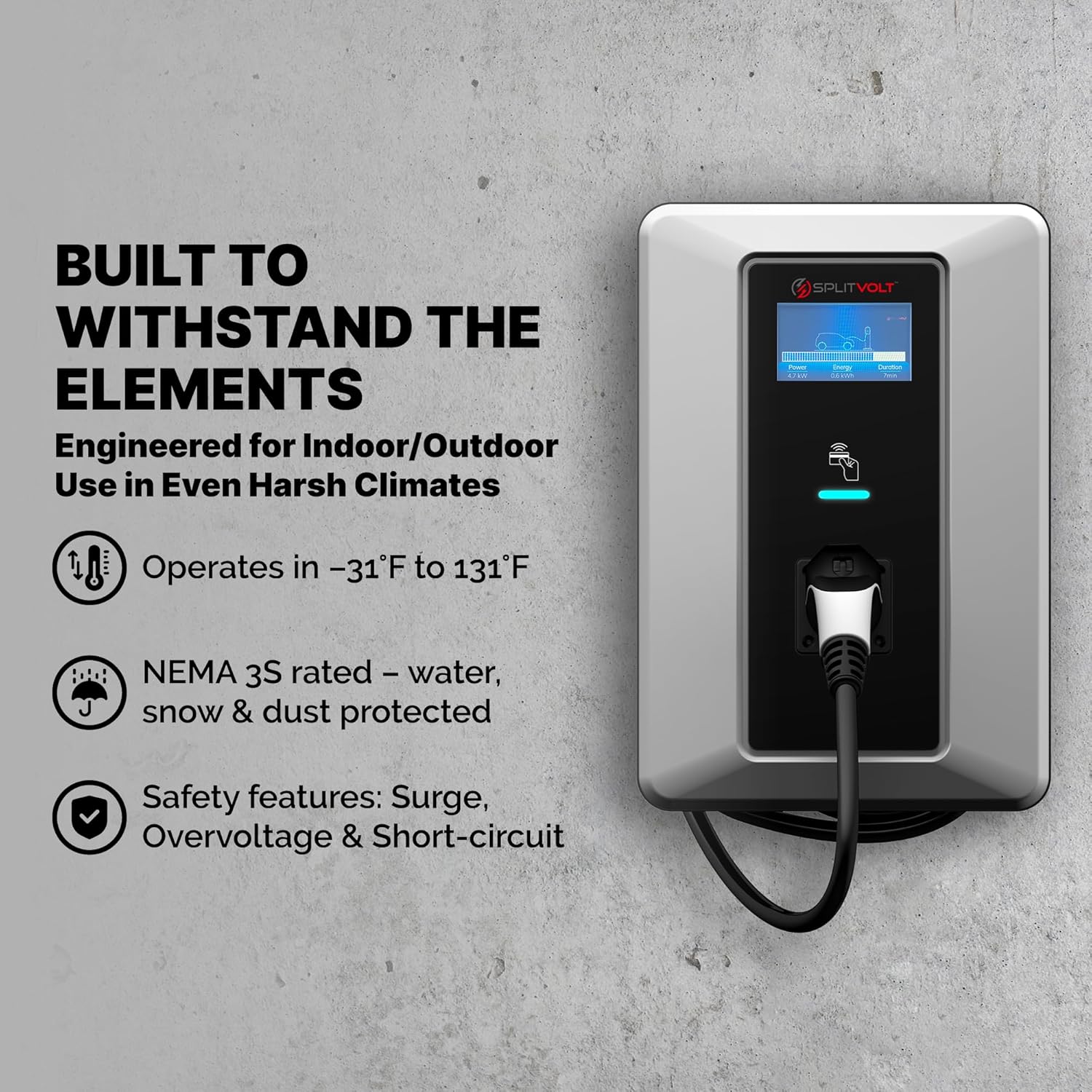

• SAFE FOR INDOOR AND OUTDOOR USE – Feel confident charging your vehicle anywhere, anytime. This NEMA 3S weather-resistant charger is safety certified and built to protect against surges, overvoltage, and short circuits. With a wide operating range from -31°F to 131°F, it delivers reliable performance in rain, snow, dust, or extreme temperatures, ensuring your investment stays protected in outdoor environments.

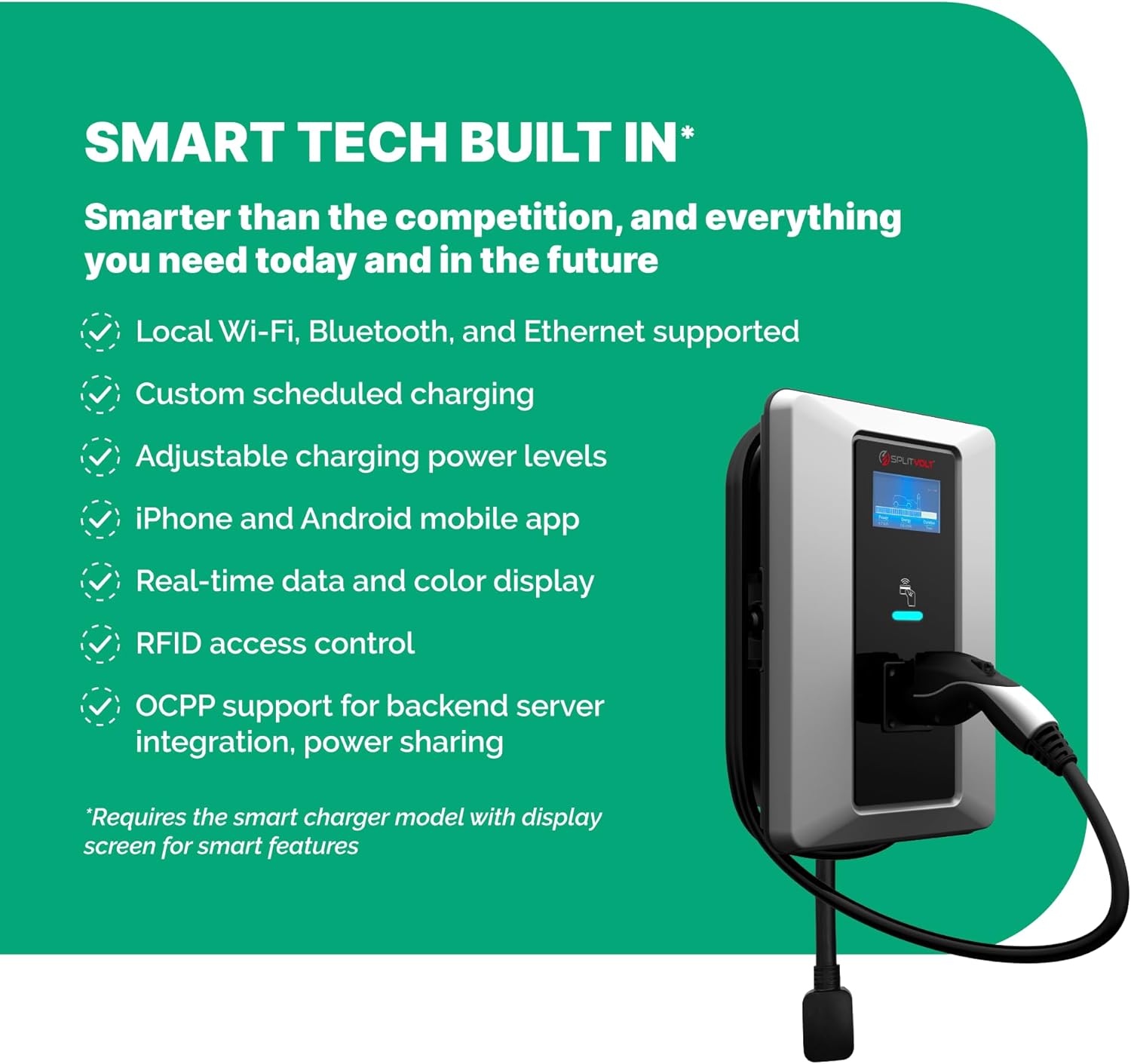

• COMMERCIAL GRADE. HOME READY. – Built for flexibility, this OCPP-compatible EV charger supports smart charging networks, solar or grid integration, and advanced energy management. Power sharing lets you charge multiple vehicles on a single circuit without overloading, while RFID access control ensures secure use, ideal for fleets, shared parking, or multi-user setups. Get professional-grade performance and control, right at home.

• U.S. COMPANY. U.S. SUPPORT. – Splitvolt is a U.S.company with local customer service, you’ll get fast, reliable support when you need it most. Whether it’s setup help, troubleshooting, or warranty questions, our knowledgeable US based team is here to assist—real support from real people who understand your needs.

Wall Charger Unboxing Video

IMPORTANT!
PLEASE READ BEFORE OPENING!
This EV wall charging station is pre-configured and easy
to use — but there are key differences between models:
■ Basic vs. Smart?
Smart units have a screen. Basic units do not. Smart
features (like scheduling and WiFi) require setup via
the mobile app.

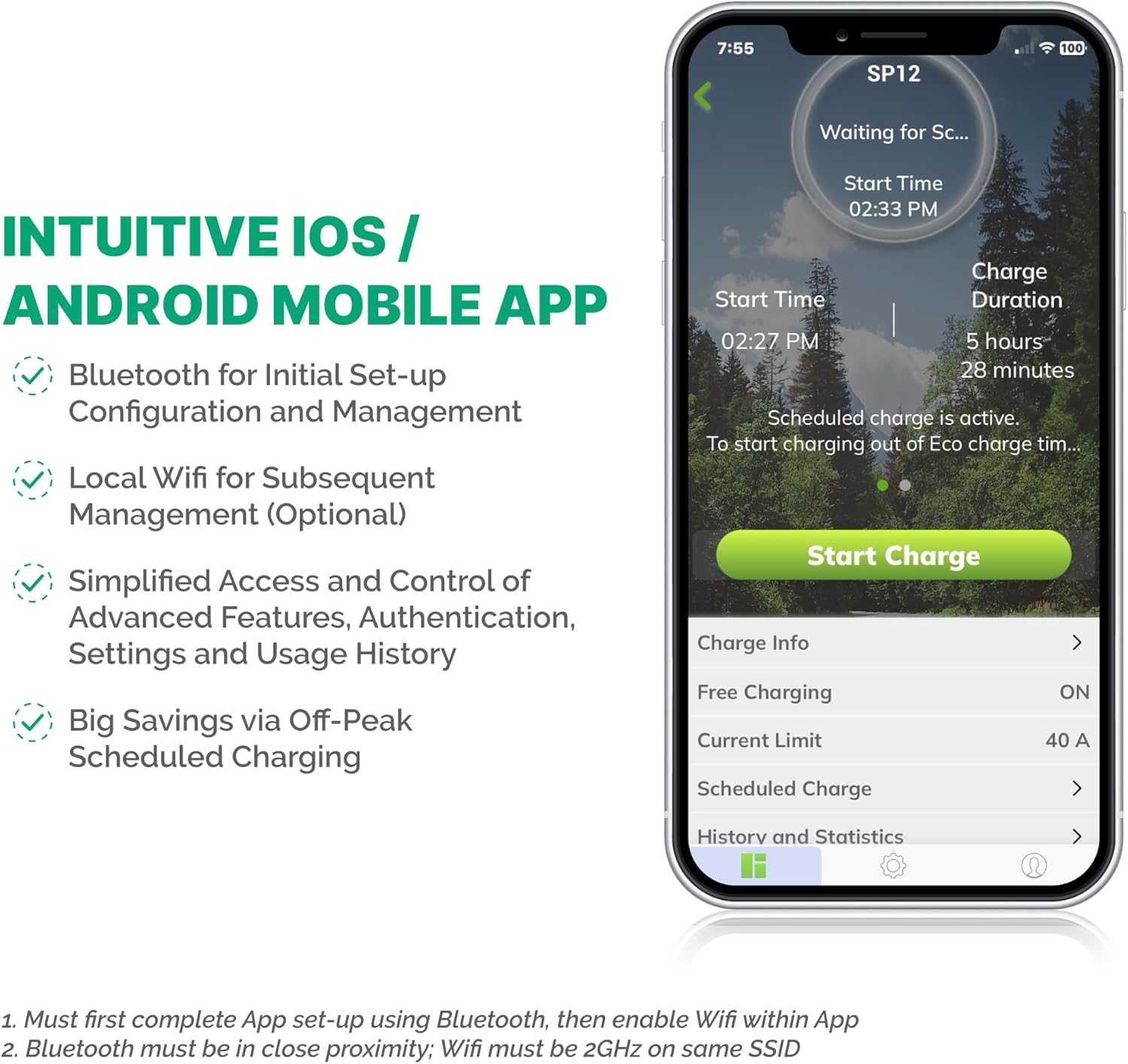

■ Smart Setup Requires Bluetooth
First connect via Bluetooth, then within the app you may
enable local WiFi access if desired.
■ DO NOT connect to the hotspot
The hotspot is for commercial installations only. Using
it disables standard access, requiring technical
support.

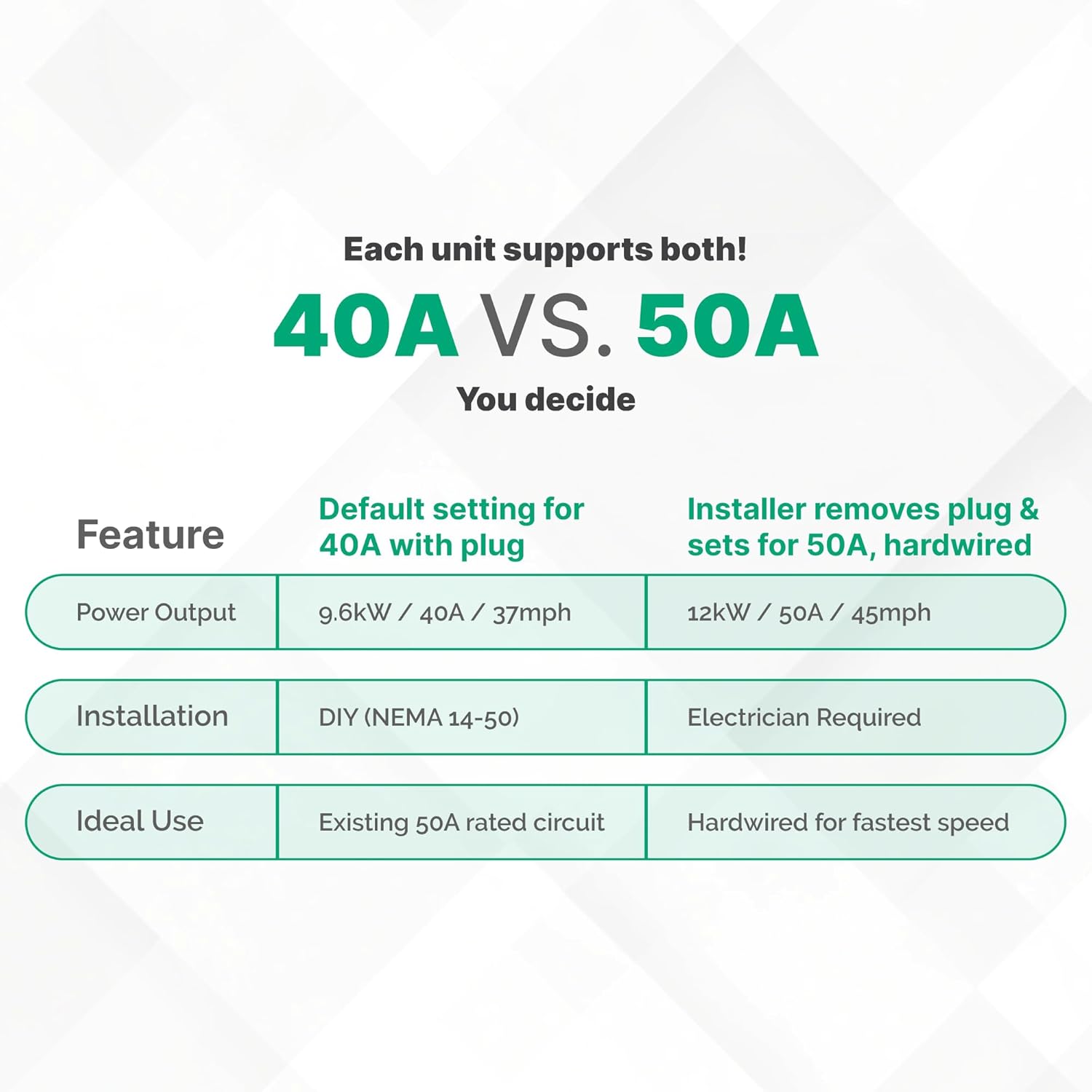

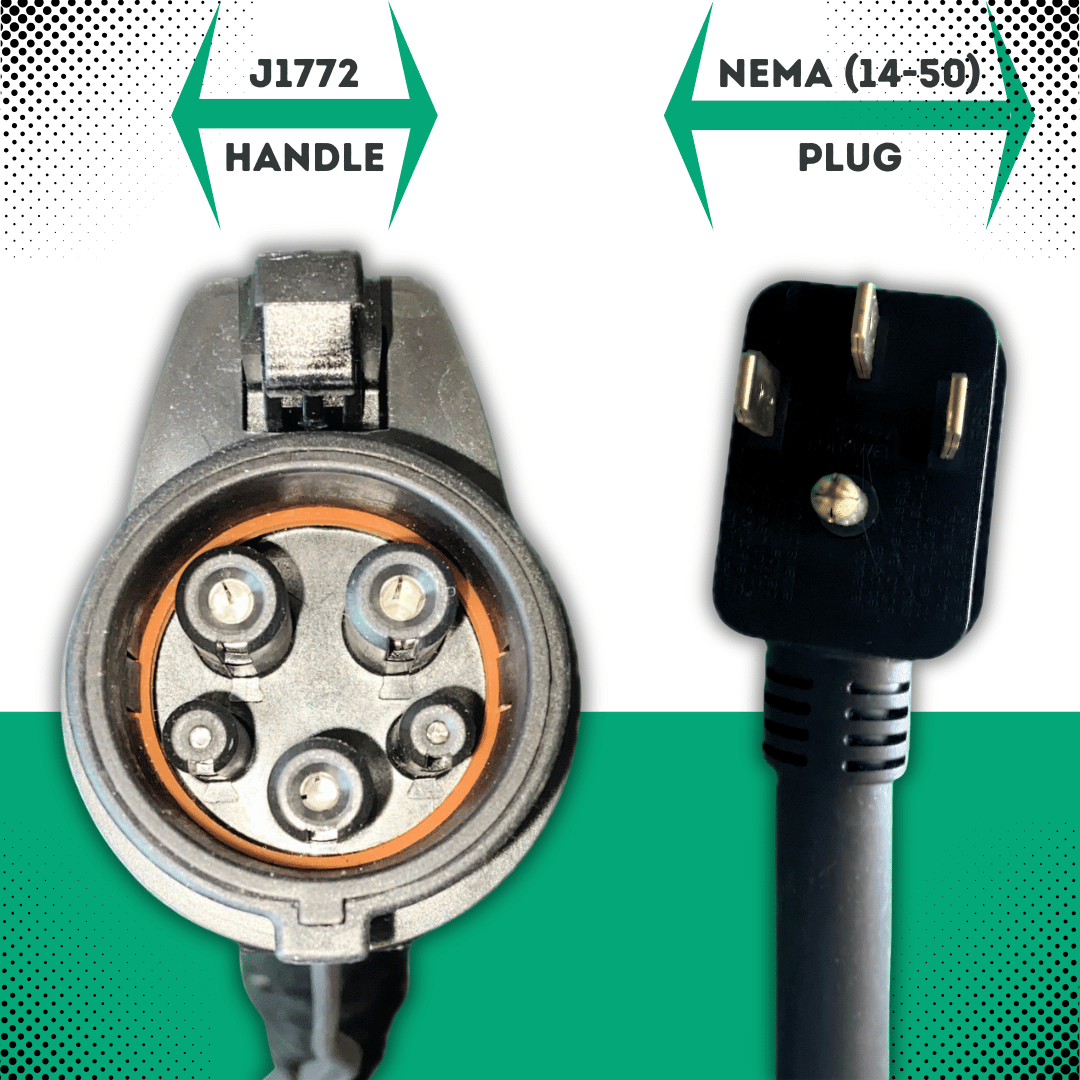

■ Every unit includes a NEMA 14-50 plug by default
This allows immediate plug-in and charging on a standard
50A outlet at a 40A charging rate. To hardwire for up to
50A charging, the plug is removed during normal
installation by a licensed electrician.
■ Works Instantly with AutoStart
Basic or Smart models plug into a standard 50A circuit
with NEMA 14-50 outlet and connect to your EV — charging
begins automatically. Wall mounting, smart features, and
hardwiring can be enabled when desired.
■ Need help?
Please contact us using the online or web support option
from your order. Most issues are simple to resolve.
■ Use the Online Manuals
Refer to the User and Installation Manuals online, not
the printed version, which may be outdated / incomplete.

Thank you for choosing Splitvolt!
