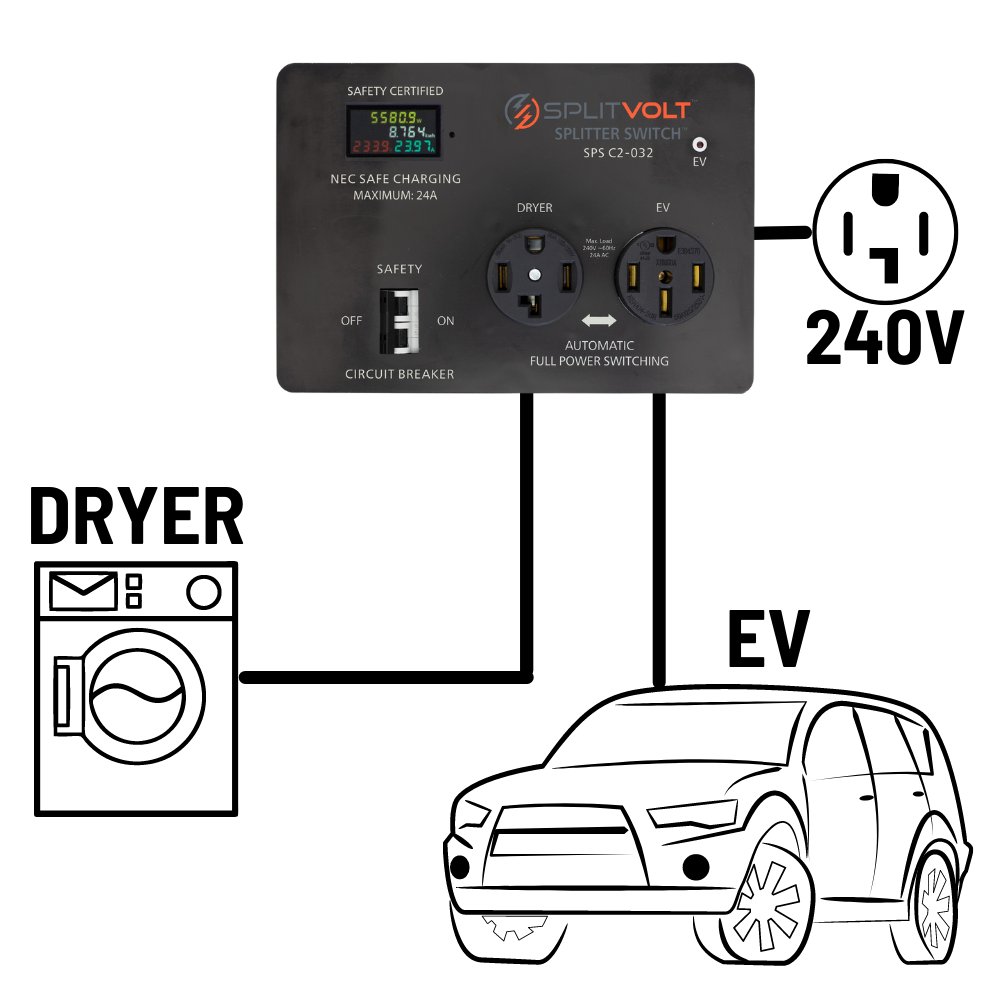

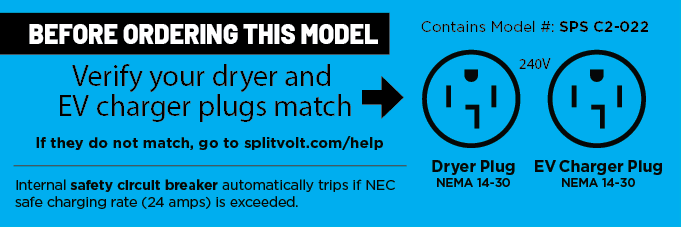

Match your 240V dryer plug to the left outlet of the Splitter Switch labeled 'Dryer' and your EV charger plug to the right outlet of the Splitter Switch labeled 'EV'.
-
![]()

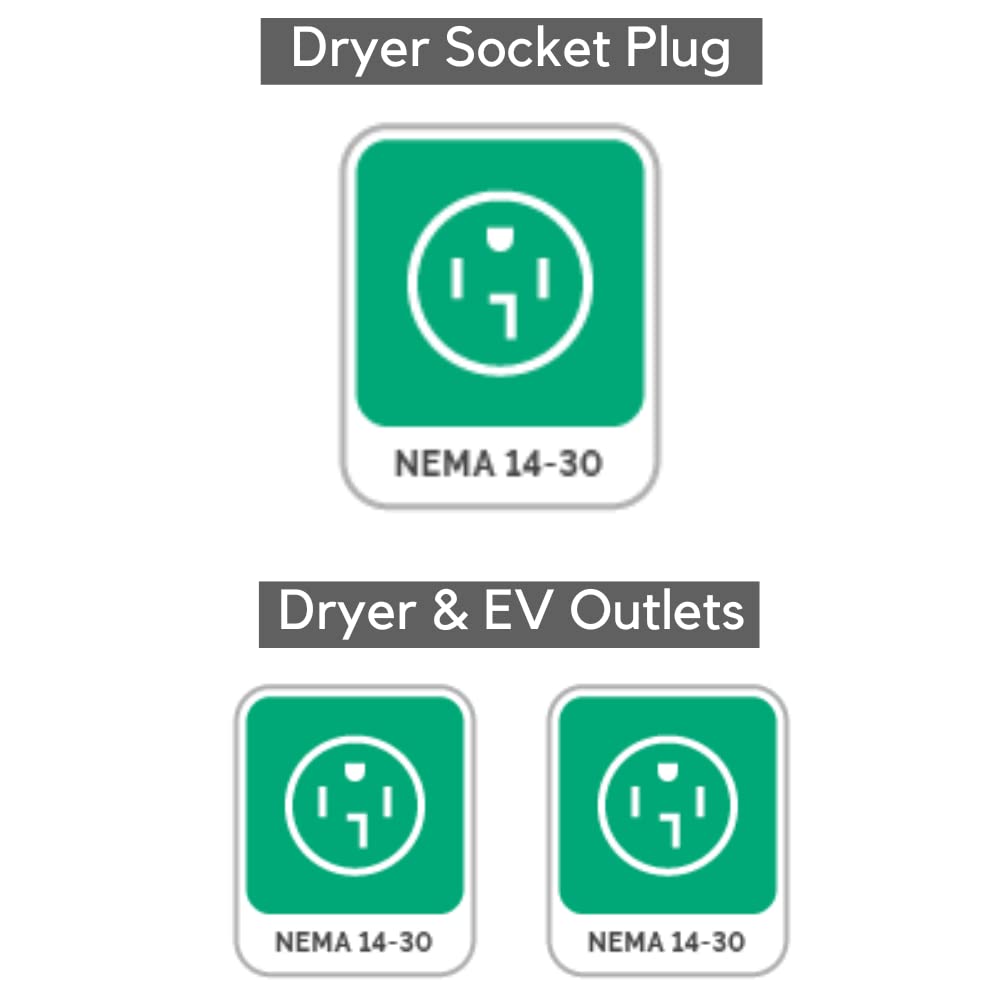

Dryer Outlet: NEMA 14-30
-
![]()
EV Charger: NEMA 14-30
-
SAVE TIME & MONEY - Our NEW cETLus Certified Electric Vehicle Household Appliance power splitter. Instantly Provides Household Power for a Level 2 EV Charger. This home upgrade electrical switch allows you to share your dryer outlet with your car fast charger so saves you time and money!

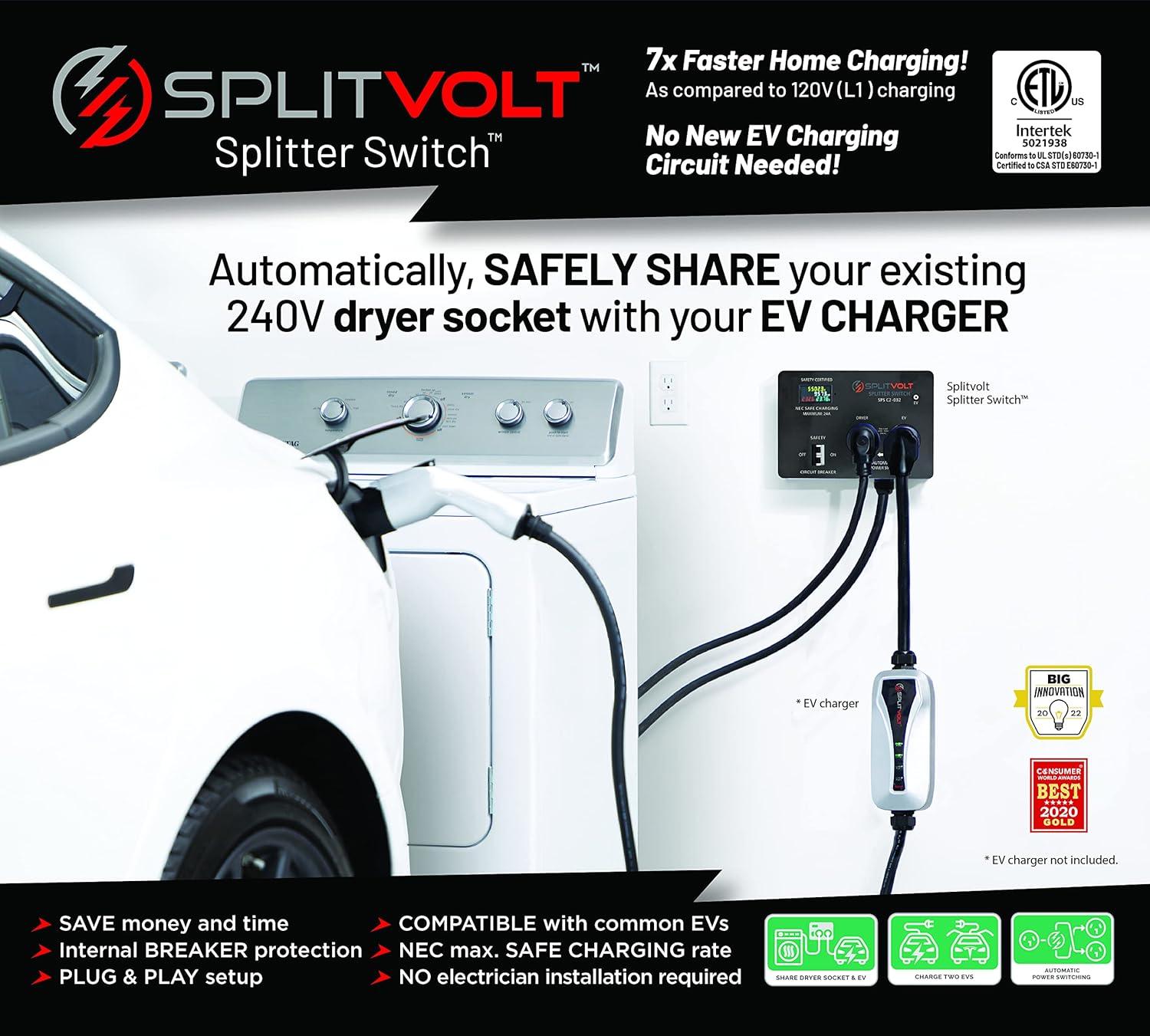

- DON’T PAY for a New Charging Circuit - Splitvolt automatic power switch safely shares an existing 220v - 240v Dryer Socket with an EV Charger. Allowing your EV Charging Station to share the same outlet as your dryer. Our electric splitter is cETLus Certified and works in conjunction with common EV car chargers.
- PLUG-AND-PLAY: Home upgrades made easy. No Electrical Installation Required! Just Plug It In and You Have Safe, L2 EV Fast Home Charging in Minutes. This Splitvolt Splitter Switch provides Level 2 power for your EV car charger without requiring electrician installation.
- FAST and SAFE: Internal Safety Breaker Protects Home Wiring from Exceeding the 24 Amp NEC Maximum Safe EV Charging Rate, While Display Shows Real-Time Power Usage. Power your charging station with this cETLus Certified Splitter Switch so you can rest assured your EV charger is safe.
-
THIS MODEL Supports Standard NEMA 14-30 Plugs and Outlets for Dryer and EV Chargers and Supports Common Third-party EVs and EV Chargers. Refer to the pictures on the product page to verify that your outlets match the correct model.
1 Year Manufacturer's Limited Warranty included
Learn More
-
![]()

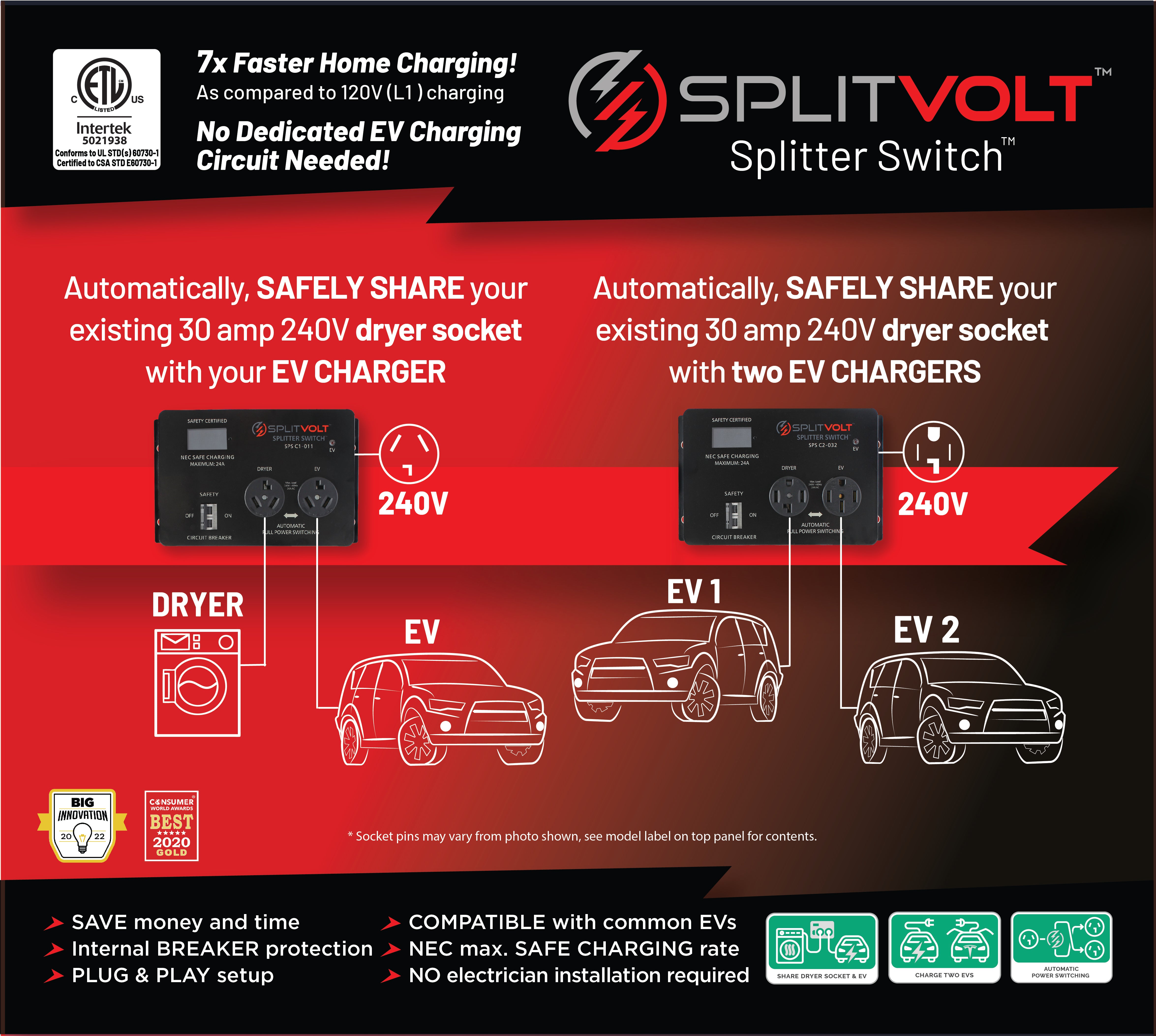

Automatic power switching safely shares your existing dryer outlet with your EV charger.
-
![]()
Plug and play simplicity; just plug it in and immediately get power for Level 2, fast home charging.
-
![]()
Save money and time; no need to install a dedicated Level 2 charging circuit.
-
![]()
Safe for home wiring via internal safety circuit breaker.
The Challenge and Solution
Depending on the battery range, charging an electric vehicle on a standard 120V outlet, also known as level one or L1 charging, can take anywhere from 20 hours to multiple days. This charging rate of adding just a few miles per hour does not work for the average driver. However, a 240V outlet will charge an EV seven times faster. This is called level two, or L2, charging.
Until now, an EV customer would need to schedule an electrician, file permits, and pay $1000-$2000 on home installation of a dedicated 240V circuit. The Splitvolt Splitter Switch is a cost effective, and time saving alternative that allows EV drivers to safely share their existing 240V dryer circuit with their EV charger; no installation required!

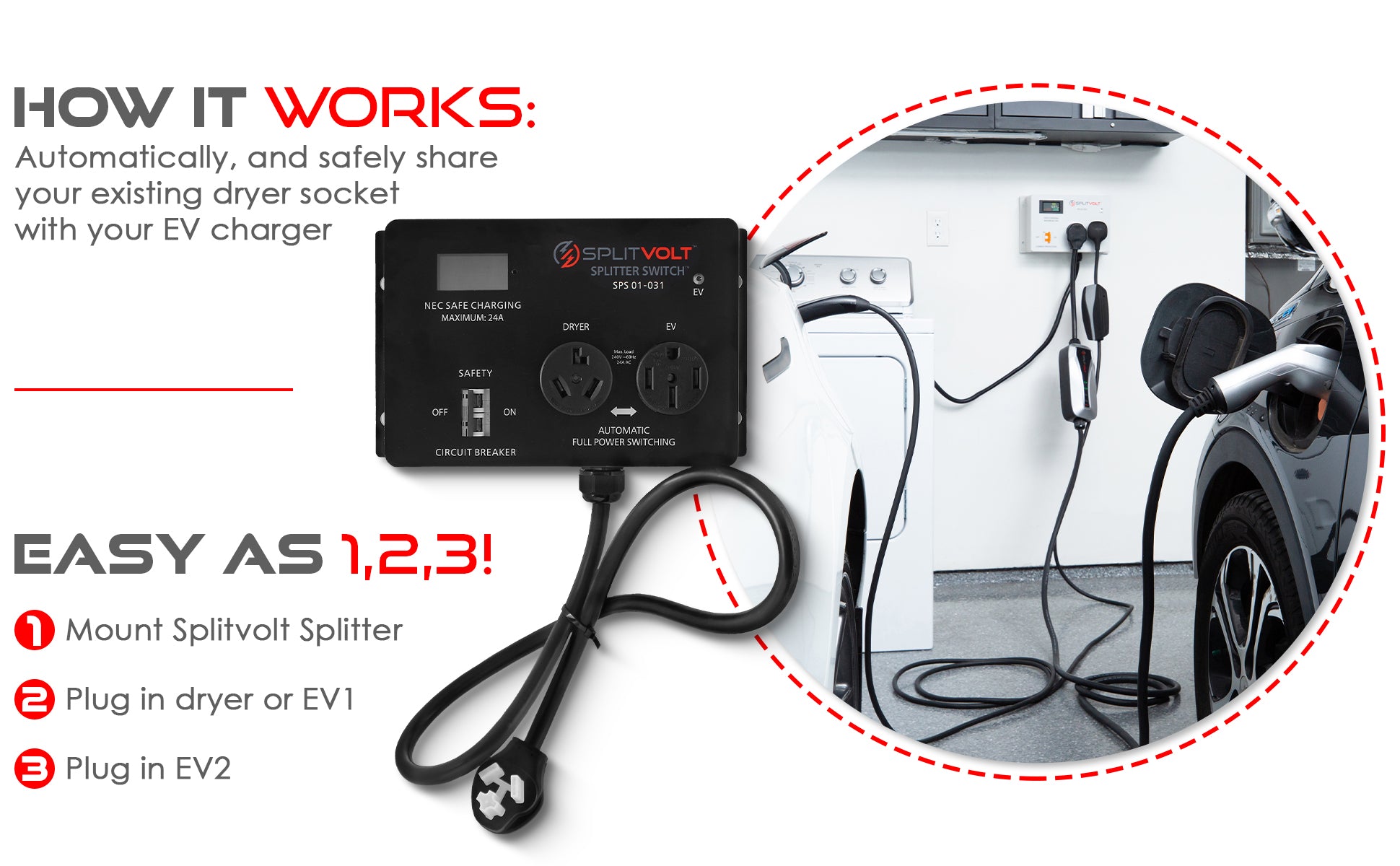

How the Splitter Switch Works

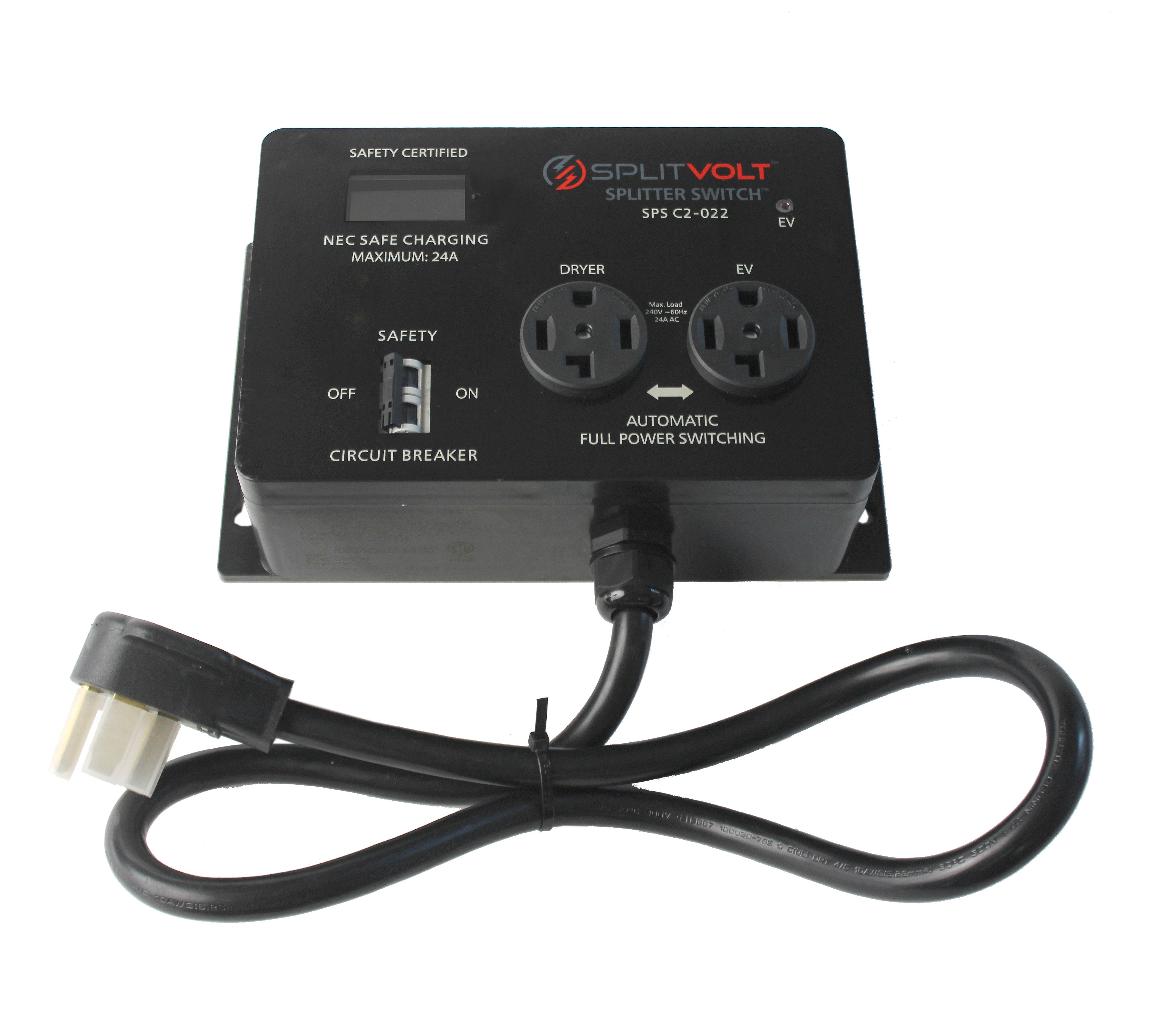

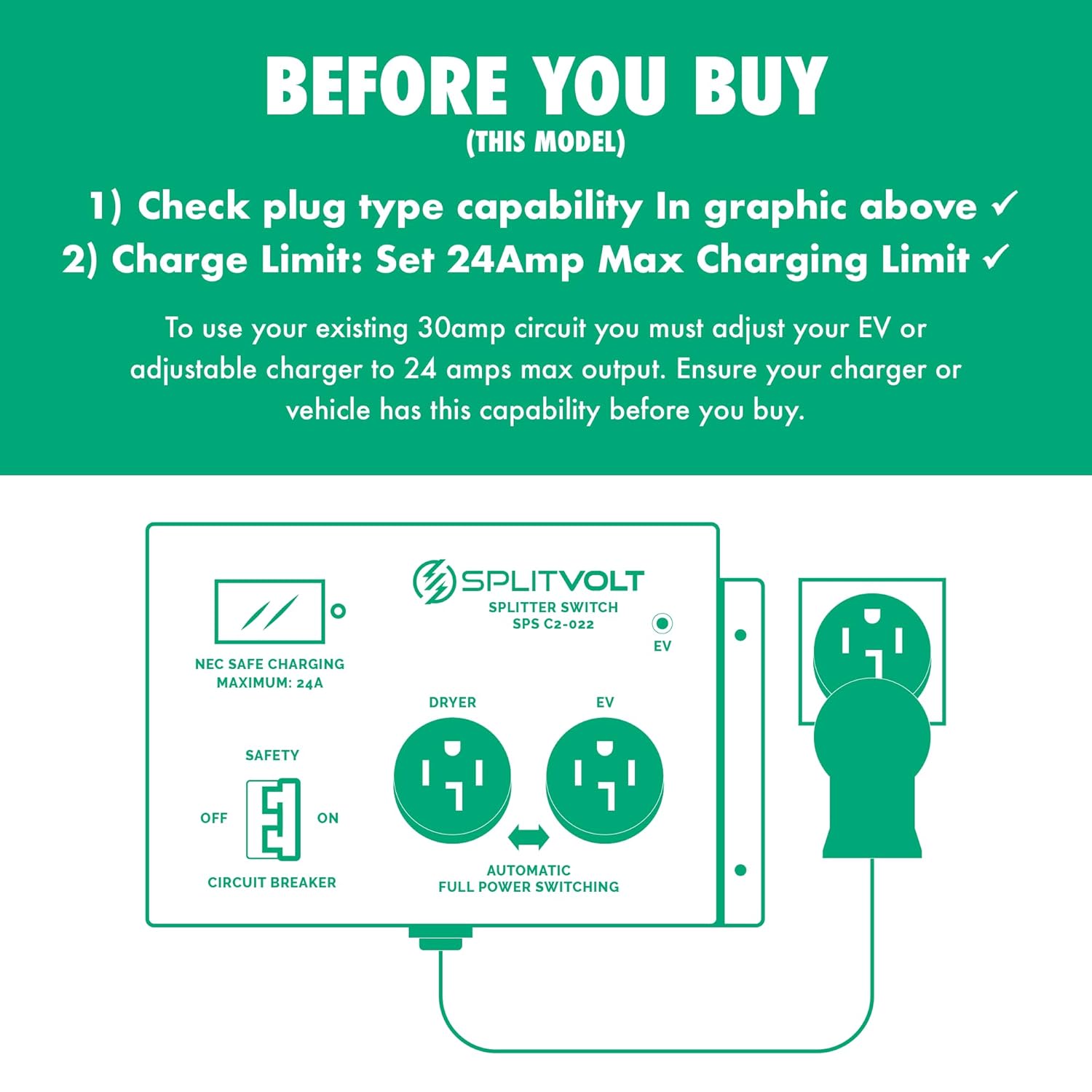

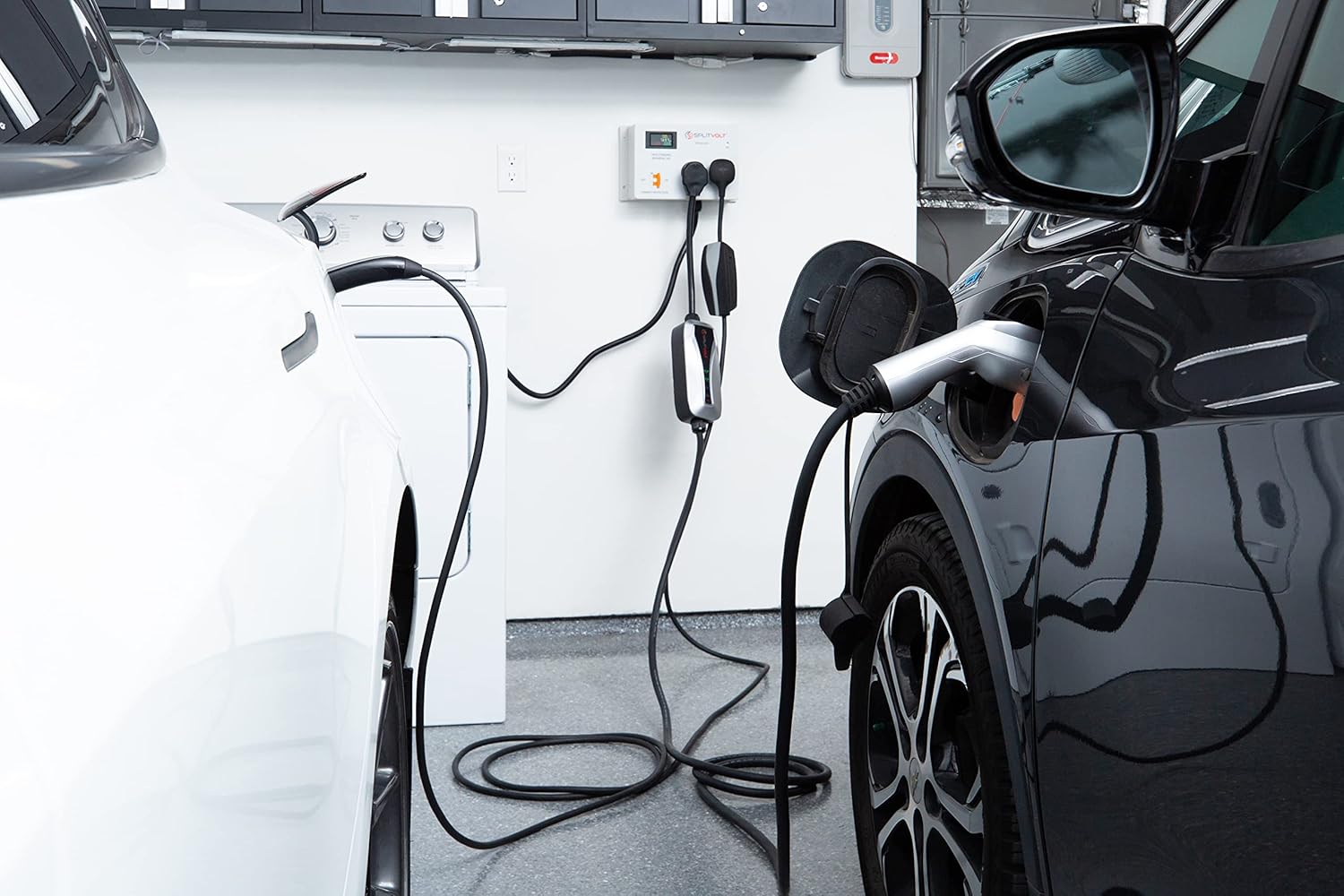

The Splitvolt Splitter Switch plugs into your existing, standard household NEMA 14-30 wall outlet, and provides two NEMA 14-30 outlets for use with your dryer and EV charger. Turn the switch to 'ON', and you've got fast home charging! It monitors, displays, and switches full 24A power automatically between attached devices. For this configuration, you must set your charger for a maximum safe charging rate of 24A.
Need more help?
-
Chat with us below
- Check out the FAQ
- www.splitvolt.com/help
Watch the video to see how the Splitter Switch works!
-(437-%C3%97-300-px).png?v=1673577769345&options=)

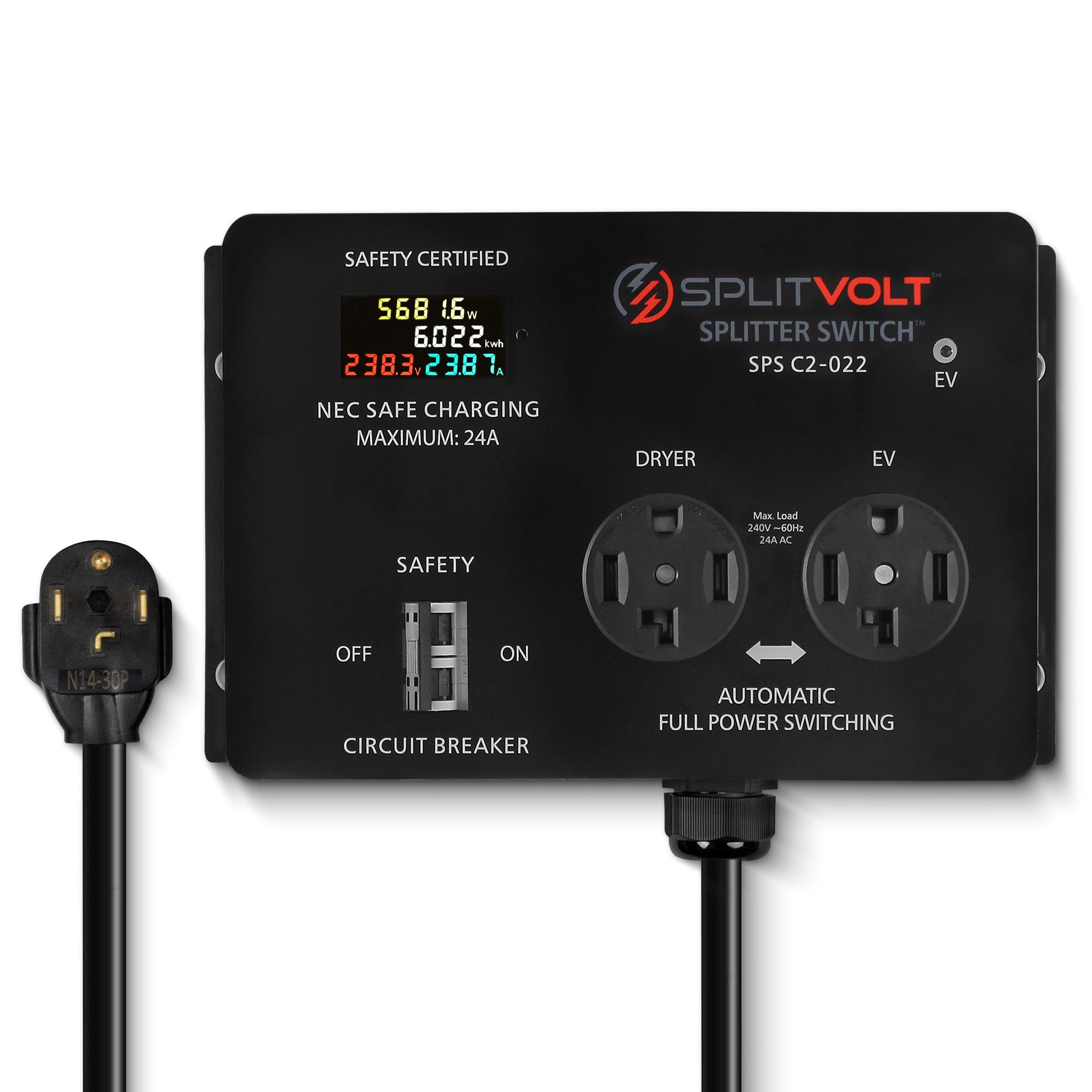

Splitter Switch Key Features
- Automated power switching between dryer and EV power sockets
- Full-color display screen and LED status lights
- Real-time voltage, current, kWh, and status indicators
- Integrated 24A circuit breaker with easy reset for added protection
- Optional manual power-off switch for extra safety and convenience
- Supports standard 30A dryer circuits (max. 24A for NEC safe charging rate)
- Compatible with standard EVs sold in North America and 3rd party EV chargers
- Supports common household dryer and EV charger plug types
- Integrated wall mount screw holes and 4 ft pigtail plug for easy installation
- Safety Agency Certification: Intertek
- Conforms to UL STD(s) 60730-1
- Certified to CSA STD E60730-1
- cETLus listed Intertek 5021938
| Wall socket connection | NEMA 14-30 Male |
| Dryer Outlet | NEMA 14-30 Female |
| EV Outlet | NEMA 14-30 Female |
| Maximum Load | 240V ~ 60Hz 24A AC |
| Dust and Water Protection | Indoor Use Only |
| Limited Warranty | 1 year |
| Digital Display | Real-time kWh, amps, volts, and status indicators |
| Unit Weight | 7 lbs |
| Unit Dimensions | 12 x 8.5 x 4 inches |
| Package Dimensions | 14 x 14 x 7 inches |
| Package Shipping Weight | 9 lbs 4 oz |
